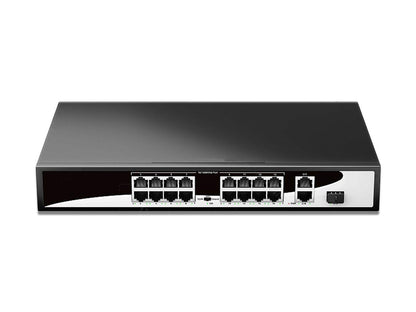

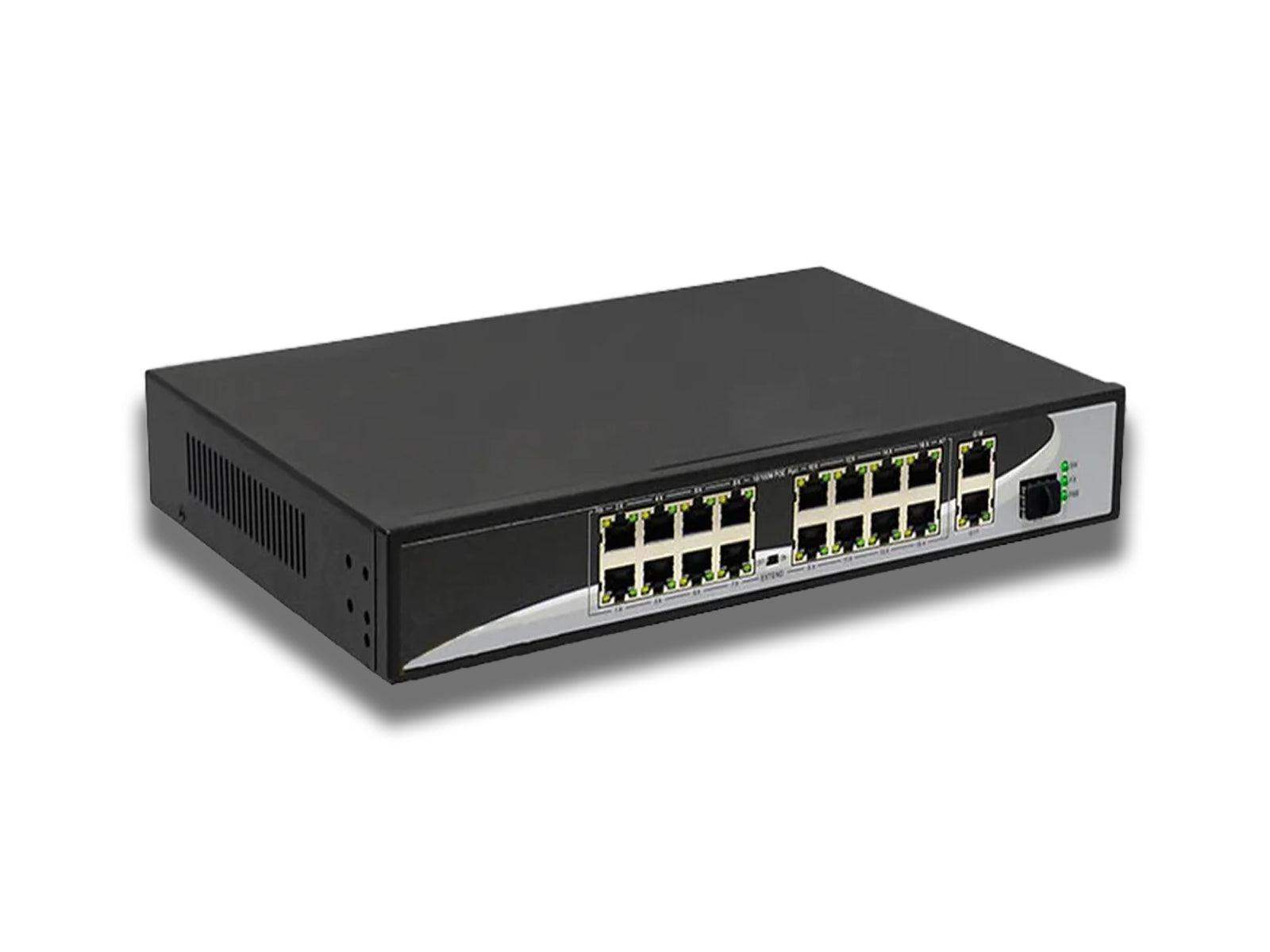

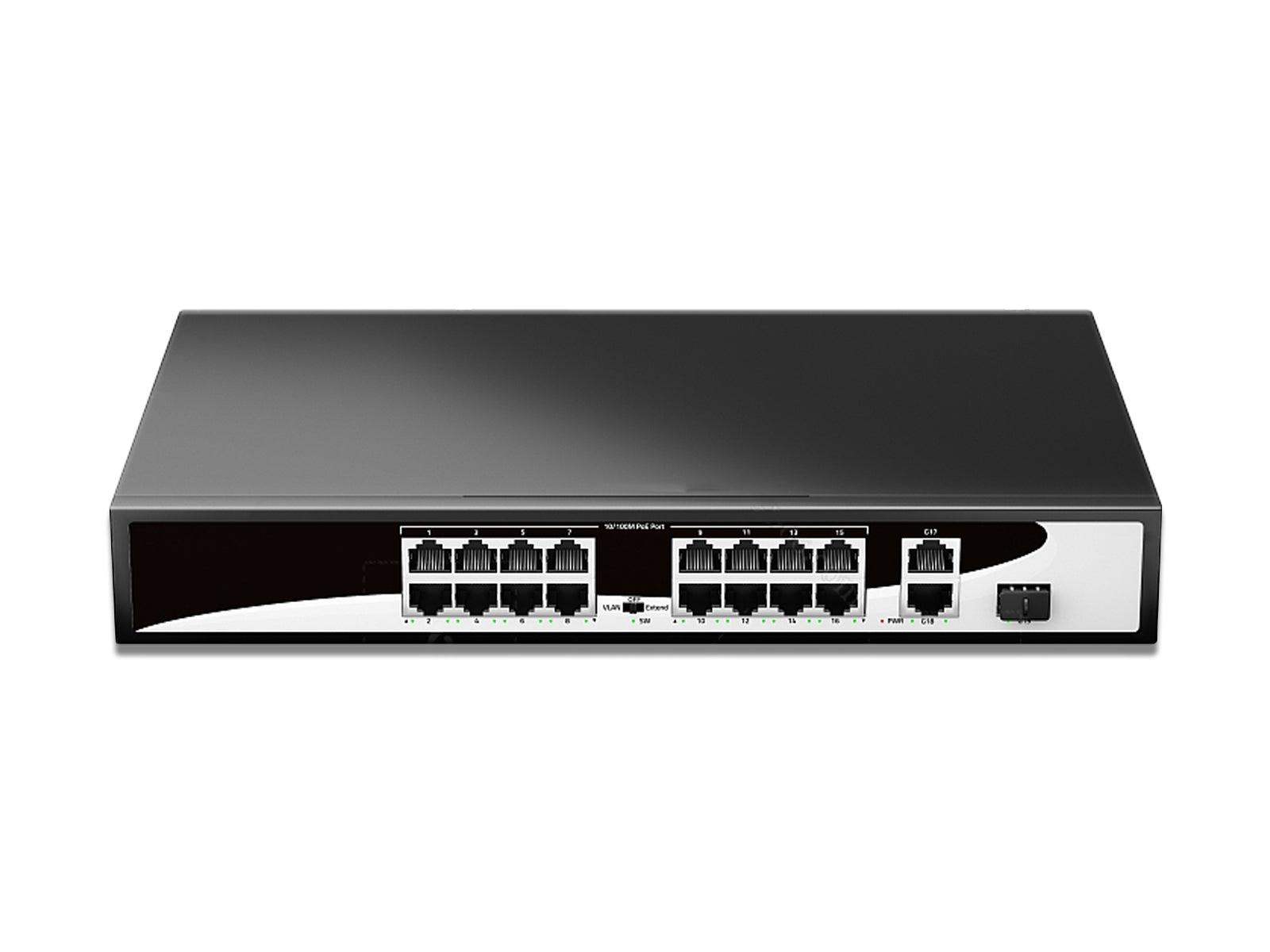

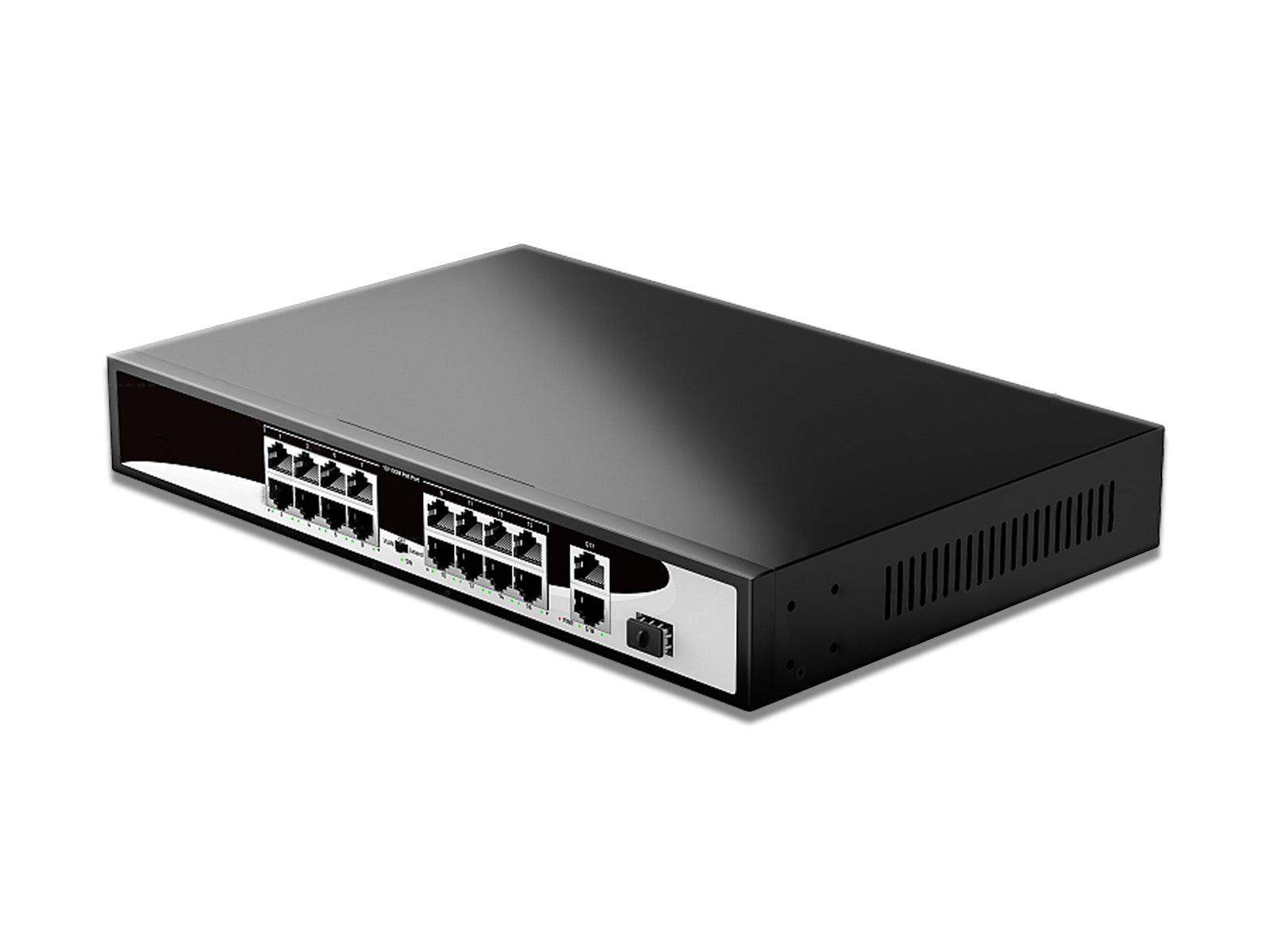

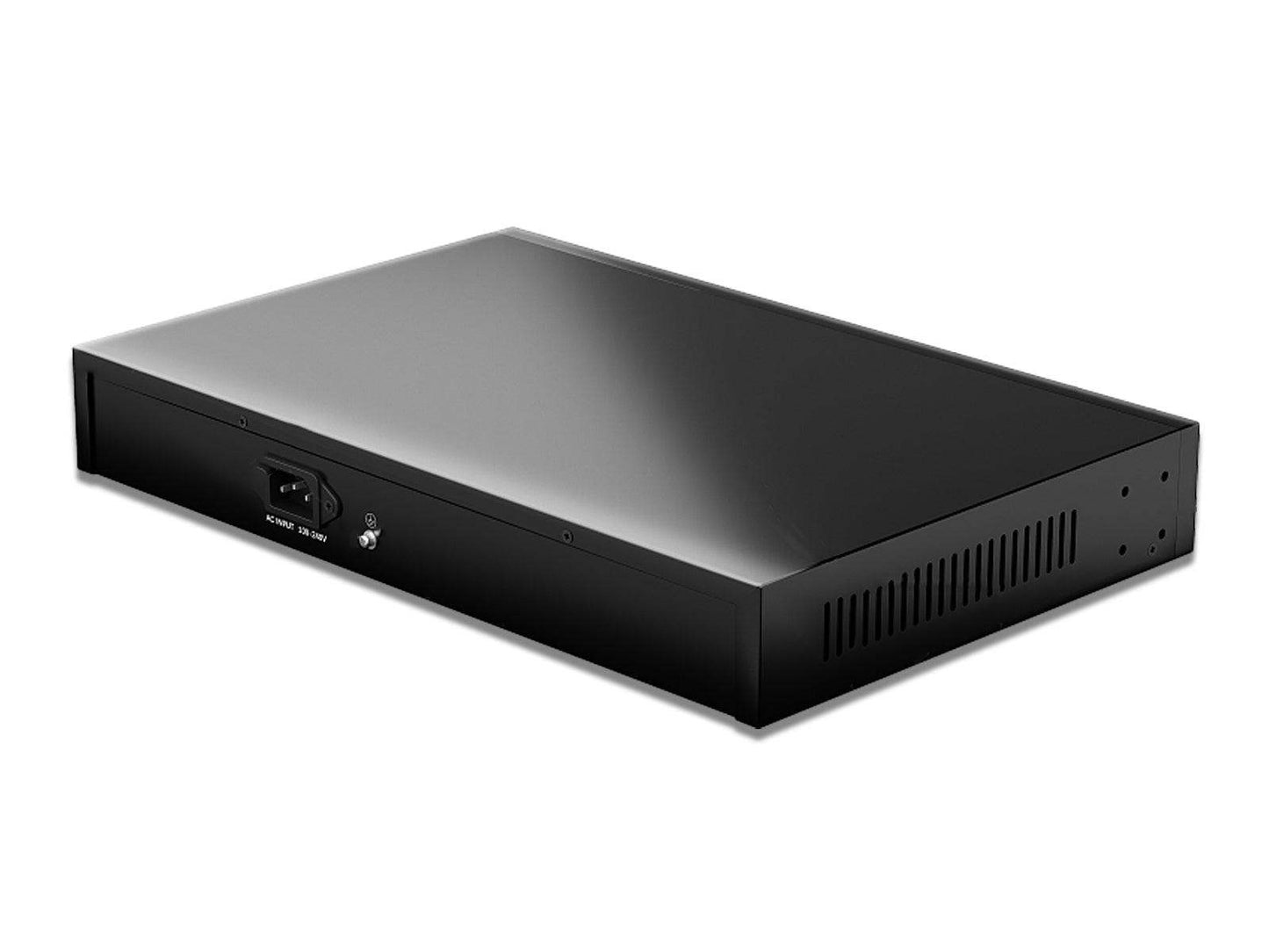

16 Port Network PoE Switch (10/100Mbps, All PoE)
Grading Information
New
Sold in its Original Packaging, Factory sealed.
Renewed
A renewed product is a high-quality, like-new item that is open-box never used or renewed to manufacturer standards.
Pre-owned
Products having been owned in the past by someone else. Open-box: Product shows packaging was opened.
Refurbished
The term 'refurbished' refers to items that have undergone maintenance before being resold.
GA - Grade A
A product restored to like-new condition:
- Looks Like new at first glance
- very light scratching , not visible from 18cm away
- No dents. No Wear on the camera bezel.
- Screen: No visible Scratches
GB - Grade B
A product restored to a Very-good condition:
- Some signs of use such as light body scratches.
- Up to 5 hairline scratches, not longer than 2.5cm, that you can't feel with your fingernail.
- 1-2 small dents/dings no more than 0.3cm
wide.
- Very light scratching, invisible when screen is lit.
GC - Grade C
A product restored to a good condition:
- Moderate signs of use such as small scratches or dents.
- Up to 10 visible scuffs/scratches not longer than
2.5cm.
- Up to 5 dents/dings no more than 3mm
wide.
- Light to mild scratching, invisible when screen is lit.
16 Port Network PoE Switch (10/100Mbps, All PoE)
- 16 Port Network PoE Switch (10/100Mbps, All PoE)
- Specifically used to transmit power & data to the likes of access points, IP CCTV cameras, IP phones, etc...
- It is an unmanaged network switch, which is handier
- This function will help to ensure the normal operation of the system
- This PoE switch has a priority function which will help protect the system when the system power is overloaded
- Manufacturer: TV Tech
16 Port Network PoE Switch (10/100Mbps, All PoE) - What's in the box
- 16 Port Network PoE Switch (10/100Mbps, All PoE)
16 Port Network PoE Switch (10/100Mbps, All PoE) - About
16 Port Network PoE Switch (10/100Mbps, All PoE)
16 Port PoE Switch
Contents
16 Port POE Switch
3 Pin Ireland / UK Plug
Users Manual
Brackets For Mounting
Includes 2 Gigabit Ports
Port Types
16x 10/100M RJ-45 POE Ports
2x 10/100/1000M RJ-45 Uplink Ports
1x 1000M SFP Port
Protocol: Supports IEEE802.3, IEEE802.3u, IEEE802.3x
PoE Standard: IEEE802.3af / IEEE802.3at
Max. Power Per Individual Port
15.4W (IEEE 802.3af)
30W (IEEE 802.3at)
PoE Port Output Voltage: 48V
Bandwidth: 9.2Gbps
POE ACT Indicator: LED Yellow
POE LINK Indicator: LED Green
Voltage input: AC100-250V
Environmental
Working Temperature: -20 to +50°C
Max. Relative Humidity: 90%, No Condensing
Dimensions (L×W×H): 31.8 x 20.8 x 4.5cm
Certification: CE,FCC,RoHS
USES of 16 Port PoE Switch
Specifically used to transmit power & data to the likes of access points, IP CCTV cameras, IP phones, etc...
